EQUIPULSER professional muscle massager for horses - technical features and main parts

Main features of EQUIPULSER ®

The EQUIPULSER tool was created to give your horse maximum well-being and health. Its proper use is capable of releasing him from muscle tension and pain, supporting him in muscle warm-up and aiding his recovery after intense training or prolonged motor activities. Designed with conscientiousness and scientific rigor for the treatment of equine muscle tissues, EQUIPULSER is the massager that transforms the care of your horse into an experience of pure pleasure, contributing to his health and well-being, without requiring any special effort on the part of the person performing the massaging treatment.

The Essence of Effectiveness and Practicality for Horse Muscle Massage

At the heart of EQUIPULSER is a high-efficiency, silenced brushless motor that provides powerful, quiet, and prolonged movement of the various interchangeable massage heads, each designed specifically for the horse's different muscle tissues and body size.

The massager comes complete with four different heads that have been developed with the input and scientific knowledge of veterinary doctors and equine experts. The different shapes of the heads ensure that each massage is tailored to the specific needs of the horse, the type of treatment to be performed and the muscle district to be massaged, ensuring optimal tissue contact and respecting its anatomy.

For each area of the horse's body there is a specific Head

EQUIPULSER detail view of Single Sphere T1 Head
Single Sphere T1 head for massage concave areas

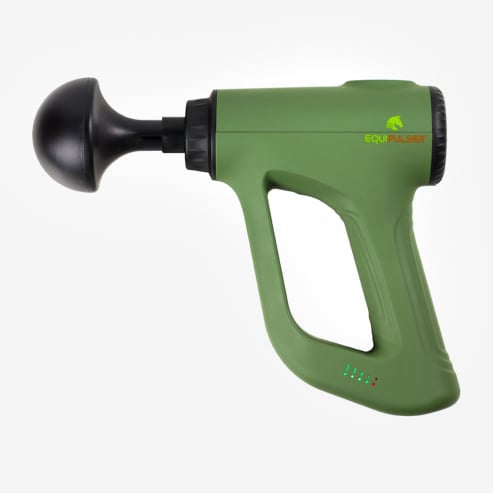

EQUIPULSER: General view of the professional muscle massager with T1 (Single Sphere) head, indicated for concave areas of horse muscle tissues
Massager with inserted a Single Sphere T1 head
EQUIPULSER detail view of the T2 Double Sphere Head
Double Sphere T2 head for horse's neck and back massage

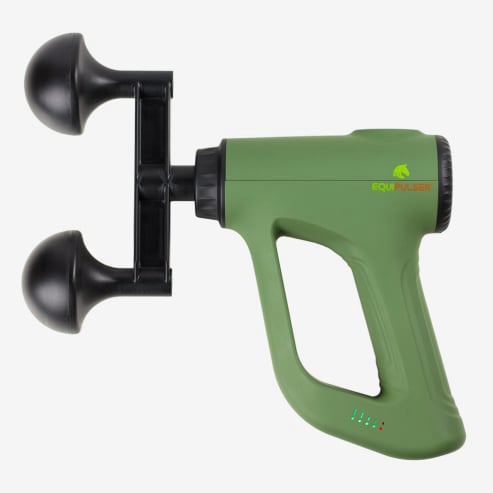

EQUIPULSER: general view of the professional muscle massager with T2 (Double Sphere) head, suitable for the horse's back and neck region
Massager with inserted a T2 Double Sphere head
EQUIPULSER detail view of the T3 Flathead
T3 Flat head for massaging flat muscle areas

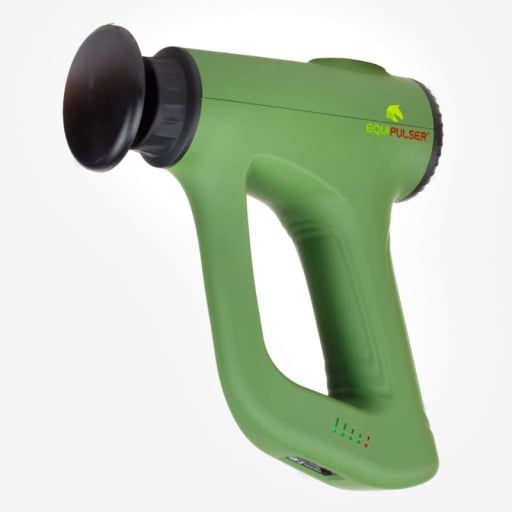

EQUIPULSER: general view of the professional muscle massager with T3 (Flat) head indicated for flat areas of horse muscle tissues
Massager with inserted the Flat Plate T3 head
EQUIPULSER detail view of the T4 Finger Head
Finger shape T4 Head (for use by Veterinarians / Massage Therapists)

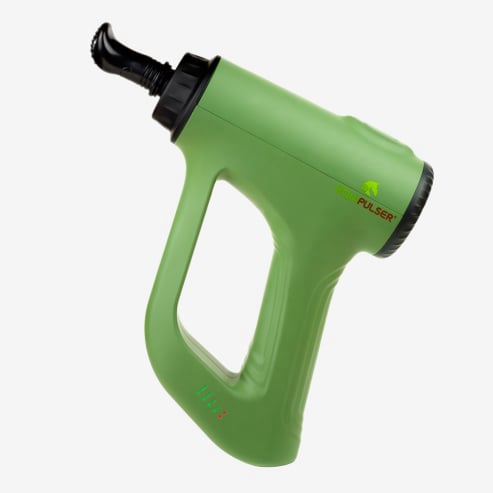

EQUIPULSER: General view of professional muscle massager with T4 (Finger) head indicated for exclusive use by Veterinarians / Therapists for treatment of specific muscle tissues of horses
Massager with the Finger shape T4 head

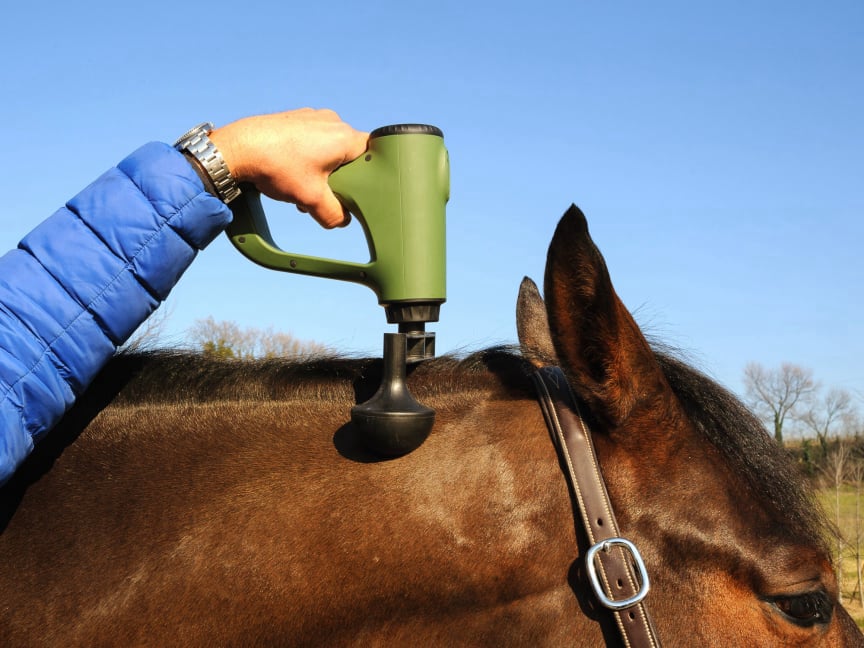

EQUIPULSER professional muscle massager for horses - example of grip during neck massage

Ergonomic Design and Intuitive Functionality

The EQUIPULSER massager's handle, a point of contact with the hands of the person performing the massage, is also designed to be ergonomic, safe, and allow comfortable, prolonged use by the user, veterinarian, or massage therapist.

The device's status display, located near the handle and integrated into the instrument, has colorful pictograms and includes a capacitive (touch) sensor in the central part of the element with switch and selector functions. The person performing the massage can then turn on the motor, select the operating mode of the massager, increase the intensity of the massage, or suspend the activity, with the use of one hand and acting with one finger.

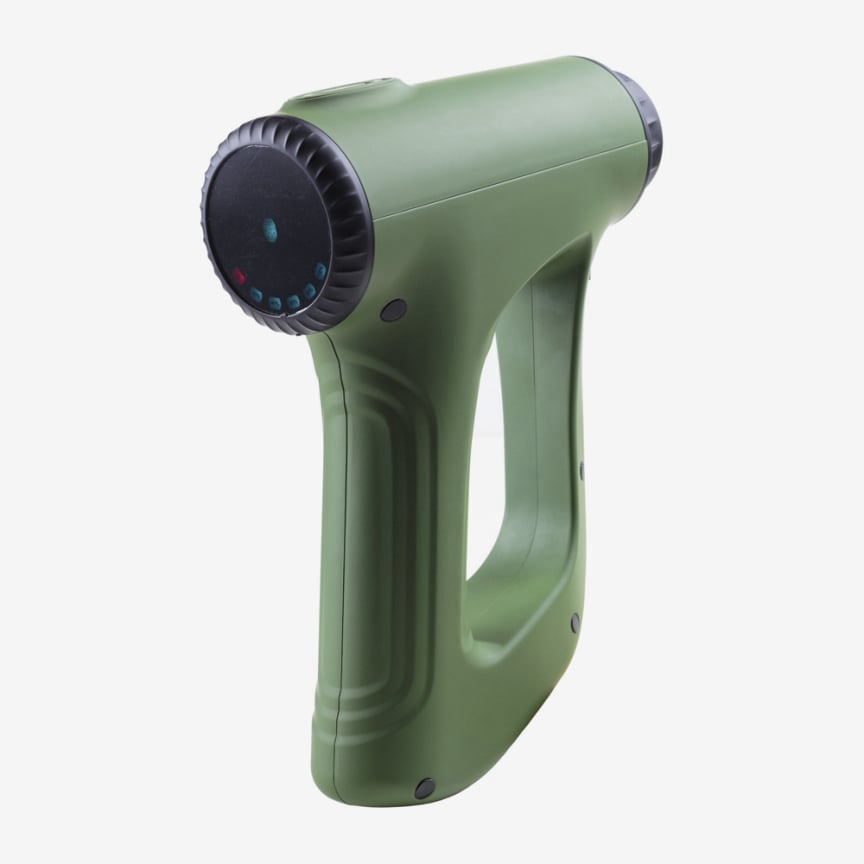

EQUIPULSER: professional muscle massager for horses - detail view of the illuminated display with colorful pictograms and the massage speed dial


Simple and intuitive display: keep everything under control

The EQUIPULSER massager turns on instantly, and using the central display dial, you can select the speed of the brushless motor that generates the vibrations of the massage head inserted in the spindle to treat the specific muscle region.

The illuminated display with colorful pictograms accurately displays your selected massage speed and gives you constant updates on the charge level of the massager's internal, rechargeable battery.

You can turn the device off in two ways: either by the button on the display or by the switch on the bottom of the handle.

A second LED display, built into the bottom handle part, allows you to keep an eye on the battery charge status, even when you use the massager while holding the main display in the opposite position from you, such as while massaging the horse's upper body.

EQUIPULSER front view with free chuck
EQUIPULSER front view with T3 Head
EQUIPULSER front view with T2 Head
Technical features
The box opposite shows the main technical features of the EQUIPULSER system model EQP-001, a professional massager with interchangeable heads for Horses and other equids.

Massager Dimensions and Weight:
17 x 22 x 5 cm (W x H x D)
790 g (including built-in battery)

Case Size and Weight:
39 x 29 x 10 cm (W x H x D)
1.7 kg (complete with all accessories)

* Effective value obtainable with the following massager setup: Speed 1, Head 1, Medium pressure.

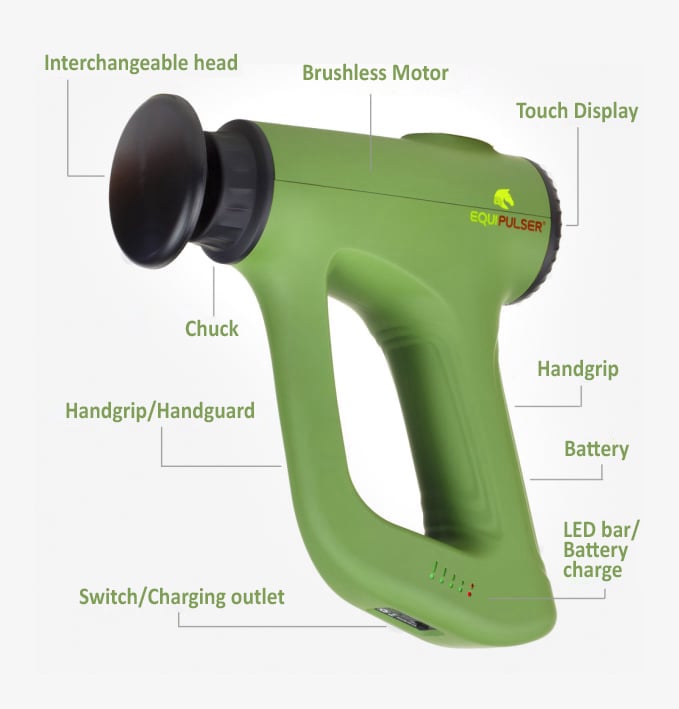

  • Components of the massaging device: Control module, brushless motor, clamp to accommodate the interchangeable heads with push-pull engagement, graphic display with central touch button, rechargeable lithium battery, on/off switch, USB-type C socket for charging.
  • Motor power: 50 W (high efficiency and silenced brushless type)
    Noise: 45-60 dB, depending on motor speed
  • Pulses per minute: 1200 rmp (min) / 2600 rmp (max)
  • Piston stroke: 10 mm.
  • Pulse and massage speed: 10 levels, selectable via rear touch display.
  • Battery capacity: 2500 mAh (3 units 18650 type battery cell) - voltage 12.6 V
  • Battery charging time: 4 hours (in case of fully discharged battery)
    Charging method: USB socket-type C power line, 5 V / 2 A power supply
    Automatic shutdown: Automatic shutdown function after 10 min of continuous activity. Timer present to equalize massages.
  • Power type: Main power selector with ON/OFF switch located at the bottom of the massager
  • Massager battery life: max. 120 min* (variable depending on conditions of use), equivalent to about 12 massage cycles of 10 min each.
EQUIPULSER pack, the professional muscle massager for horses and other equids

EQUIPULSER ® - Professional Muscle Massager for Horses
Maximum Recovery & Performance

Give your horse the care of a champion! EQUIPULSER® is the ultimate muscle massager designed for sport and working horses. Thanks to its advanced deep vibration technology, it relieves muscle stiffness, improves circulation, and accelerates recovery, helping your horse perform at its best—every day.

🔹 Enhance mobility & prevent muscle tension – Ideal for both training and recovery.
🔹 Professional-grade therapy at your fingertips – Designed to replicate the benefits of manual massage.
🔹 Easy to use, safe, and effective – A must-have for every horse owner.

What You Get with the EQUIPULSER® System

✔ n. 1  EQUIPULSER® Professional massager (model EQP-001) with integrated rechargeable battery
✔ n. 4 Interchangeable massage heads (T1: single sphere, T2: double sphere, T3: flat, T4: finger thumb) for targeted muscle relief
✔ n. 1  USB/USB-C charging cable, a mini cleaning brush, and replacement rubber o-rings
✔ n. 1  Instruction manual with anatomical illustrations and a detailed guide to selecting the right head for each muscle group
✔ n. 1  Shockproof carrying case for safe and easy transport

Your Horse Deserves the Best – Order Now!
EQUIPULSER® is now available at its full price—because true performance has no compromises.
Ensure your horse’s well-being today!

Buy at  MASCHERONI Shop
